# JL7 Recommend Parameters

### RECOMMENDDE PARAMETERS FOR COMMON MATERIALS

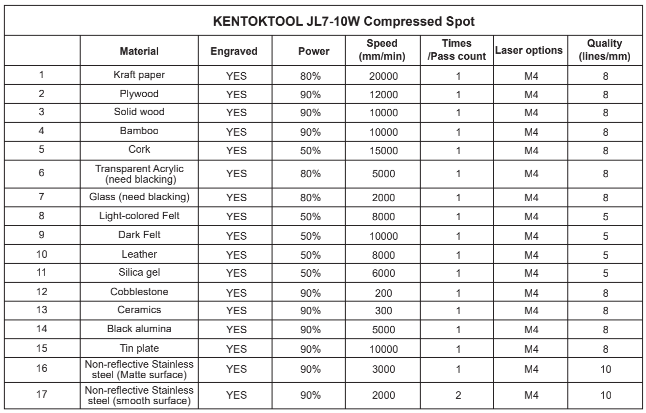

Common materials and recommended engraving parameters for 10W output laser

<figure><img src="https://3417551382-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFVFacM8C8CPmGFZm1piH%2Fuploads%2FS5D1Ld54EG8BMBJhUTXu%2F%E6%88%AA%E5%B1%8F2024-07-29%2016.16.21.png?alt=media&#x26;token=17db86cd-3deb-409a-bf0d-0533a6b4cf34" alt=""><figcaption></figcaption></figure>

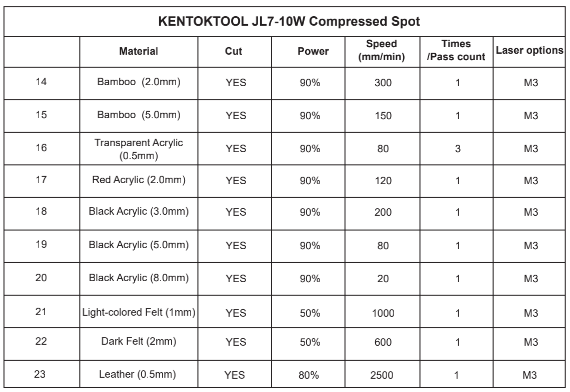

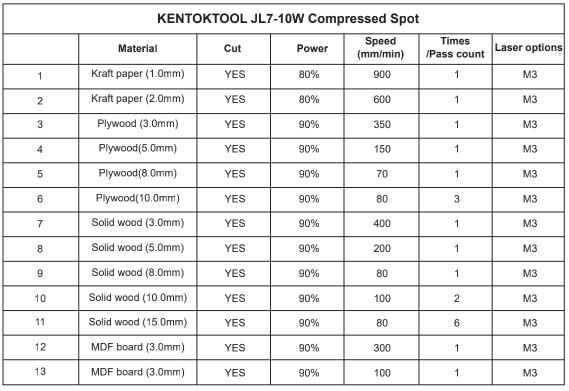

Common materials and recommended cutting parameters for 10W output laser

<figure><img src="https://3417551382-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFVFacM8C8CPmGFZm1piH%2Fuploads%2FicosvPUVEw3UJse4j4dz%2F%E6%88%AA%E5%B1%8F2024-07-29%2016.17.02.png?alt=media&#x26;token=aed3750b-c3e3-4642-8af6-f02848823e74" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3417551382-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FFVFacM8C8CPmGFZm1piH%2Fuploads%2FESi88tZp5RmUOtpohceb%2F%E6%88%AA%E5%B1%8F2024-07-29%2016.17.30.png?alt=media&#x26;token=7242b670-04fd-4a12-9a2b-5df5aade4870" alt=""><figcaption></figcaption></figure>
